Custom High-Current Tester, 2017

We designed this production line tester and built four working units in less than two months start-to-finish, including circuit design, PCB layout, on-board firmware, and Windows® PC control and logging software. It can measure cable resistance to within 100µΩ with test currents of up to 100A. Tens of thousands of cables have been tested to date.

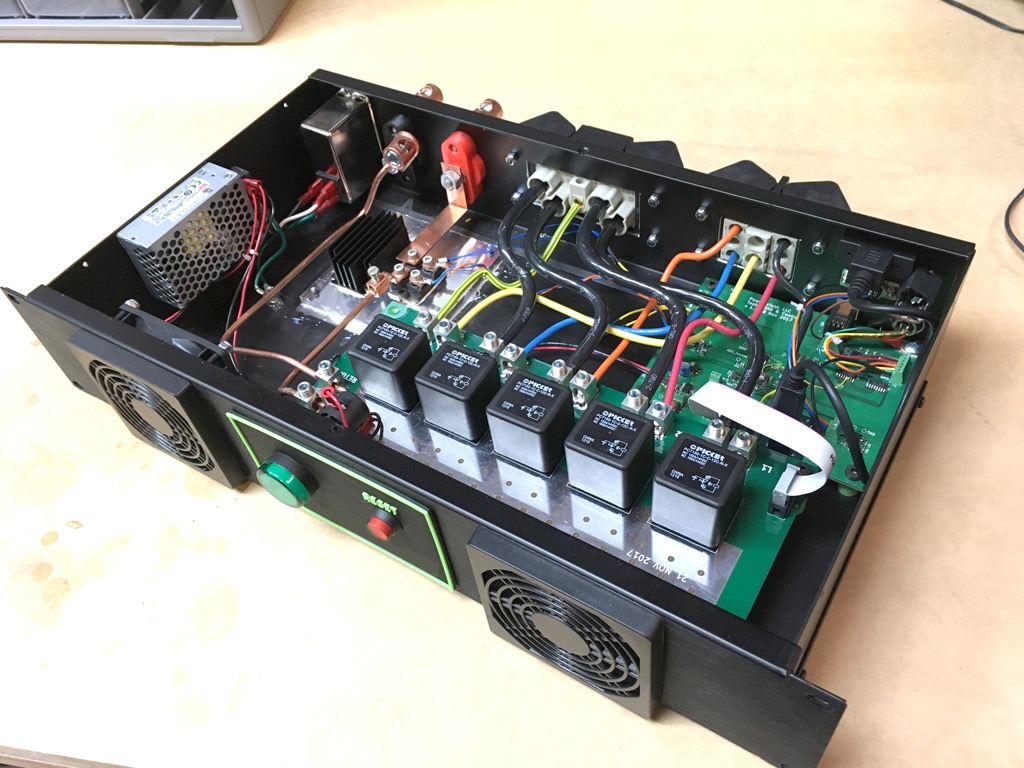

Tester Front 1024
